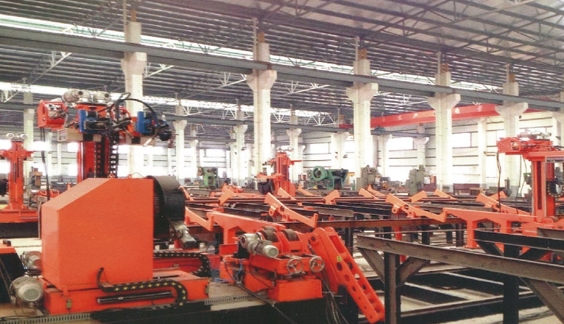

自动管道预制生产线/Automatic Pipeline Prefabrication Production Line

我司生产的管道预制焊接生产线是集成了管段预处理、直管输送、切割下料、坡口加工、焊口组对、自动化焊接、管段后处理等多功能的自动化生产线，整线结合了国内外先进的机械、控制、液压、传动、切割及焊接等多方面技术，通过配套先进的数控机械化设备和高效自动化焊接专机，加强管道工厂化预制的深度，有效提高焊接质量和生产效率。

The prefabricated welding production line for pipelines manufactured by our company is an automated production line integrating multiple functions such as pipe section pretreatment, straight pipe conveying, cutting and blanking, groove processing, welding joint alignment, automated welding, and pipe section post-treatment. The whole line combines advanced technologies in machinery, control, hydraulic pressure, transmission, cutting, welding and other aspects both at home and abroad. By equipping with advanced CNC mechanized equipment and highly efficient automated welding special machines, the degree of factory prefabrication of pipelines is enhanced, effectively improving the welding quality and production efficiency.

工艺优势

Technical advantages

采用数控相贯线切割设备，可实现一次性下料及各种相贯线开孔、坡口加工等工艺;

采用高速坡口机有效提高坡口加工及组对的效率和质量:物流输送系统实现管段、管件的自动输送及上/下料;

各类型自动化焊接专机提高焊接效率和质量，降低对焊工技术水平的要求，减轻工人的劳动强度;

整线采用PLC配合人机界面控制，操作简单，易于扩展；

The adoption of CNC intersecting line cutting equipment can realize one-time blanking as well as various processes such as intersecting line hole opening and groove processing.

The use of high-speed groove machines can effectively improve the efficiency and quality of groove processing and assembly.

The logistics conveying system enables the automatic conveyance and loading/unloading of pipe sections and pipe fittings.

Various types of automatic welding machines enhance the welding efficiency and quality, reduce the requirements for the technical level of welders, and relieve the labor intensity of workers.

The whole production line is controlled by PLC in combination with the human-machine interface, which is simple to operate and easy to expand.

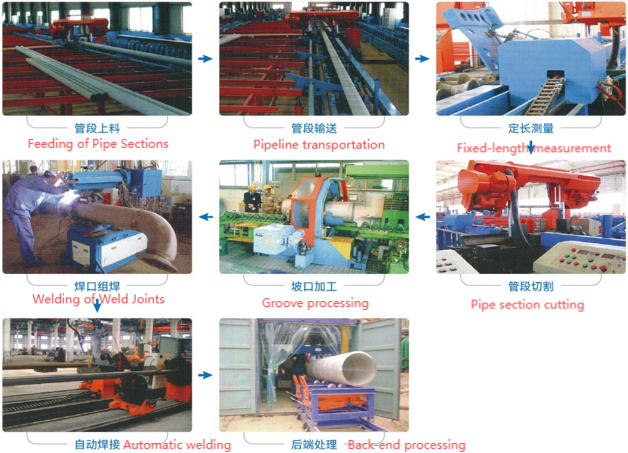

技术流程

Technical process

适用范围

Application ranges

适用行业:石油、化工、锅炉、造船、核电、电力、医药、建筑等;

适用领域:工艺管道预制及设备接管预制:

适用接头形式:管+管、管+管件、管件+管件等多种接头形式

适用材质:碳钢、合金钢、低温钢、耐热钢及不锈钢等;

适用焊接方法:TIG、MIG/MAG、SAW、PLASMA等多种方法，以满足不同材质、壁厚、管径焊接的需要适用管径范围:DN50~DN1220(2“~48”)(可根据用户要求设计)

单线设计生产能力:300,000~1,000,000寸径/年(根据设备配置的不同)

Scope of Application

Applicable Industries: petroleum, chemical engineering, boiler manufacturing, shipbuilding, nuclear power, electric power, medicine, construction, etc.;

Applicable Fields: prefabrication of process pipelines and prefabrication of equipment nozzles;

Applicable Joint Forms: various joint forms such as pipe + pipe, pipe + pipe fitting, pipe fitting + pipe fitting, etc.;

Applicable Materials: carbon steel, alloy steel, low-temperature steel, heat-resistant steel, stainless steel, etc.;

Applicable Welding Methods: TIG, MIG/MAG, SAW, PLASMA and other various methods to meet the welding requirements of different materials, wall thicknesses and pipe diameters.

Applicable Pipe Diameter Range: DN50 - DN1220 (2" - 48") (It can be designed according to users' requirements).

Single-line Design and Production Capacity: 300,000 - 1,000,000 inch-diameter per year (depending on different equipment configurations).
